    • Alnico

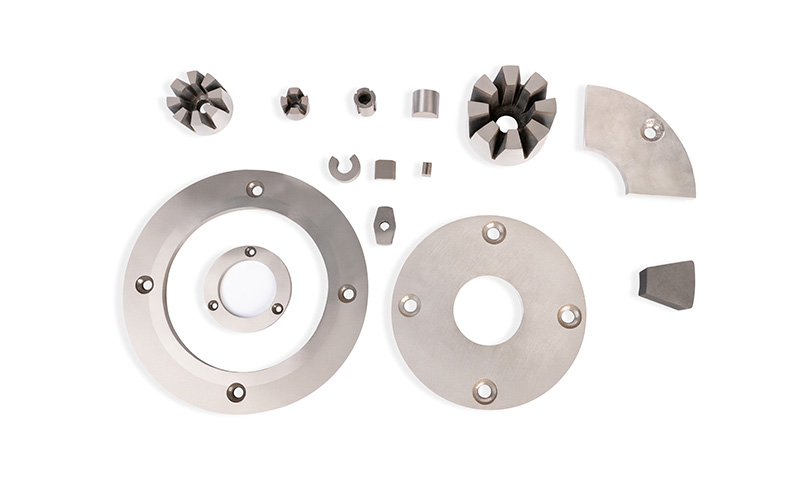

    Alnico is the first modern permanent magnet, and also a rare-earth-free permanent magnetic material with high remanent magnetism, high Curie temperature and working temperature, low temperature coefficient, good mechanical properties and corrosion resistance, but its coercivity is low, so it is easy to be magnetized and demagnetized. Alnico according to the preparation process is divided into casting Alnico and sintered Alnico, casting process can be processed into a variety of sizes and shapes, sintered products are limited to small sizes, magnetic properties are slightly lower than the casting products, but the dimensional accuracy, machinability is good. Alnico is widely used in automotive parts, instrumentation, electro-acoustics, motors, nuclear power, aerospace and other fields.

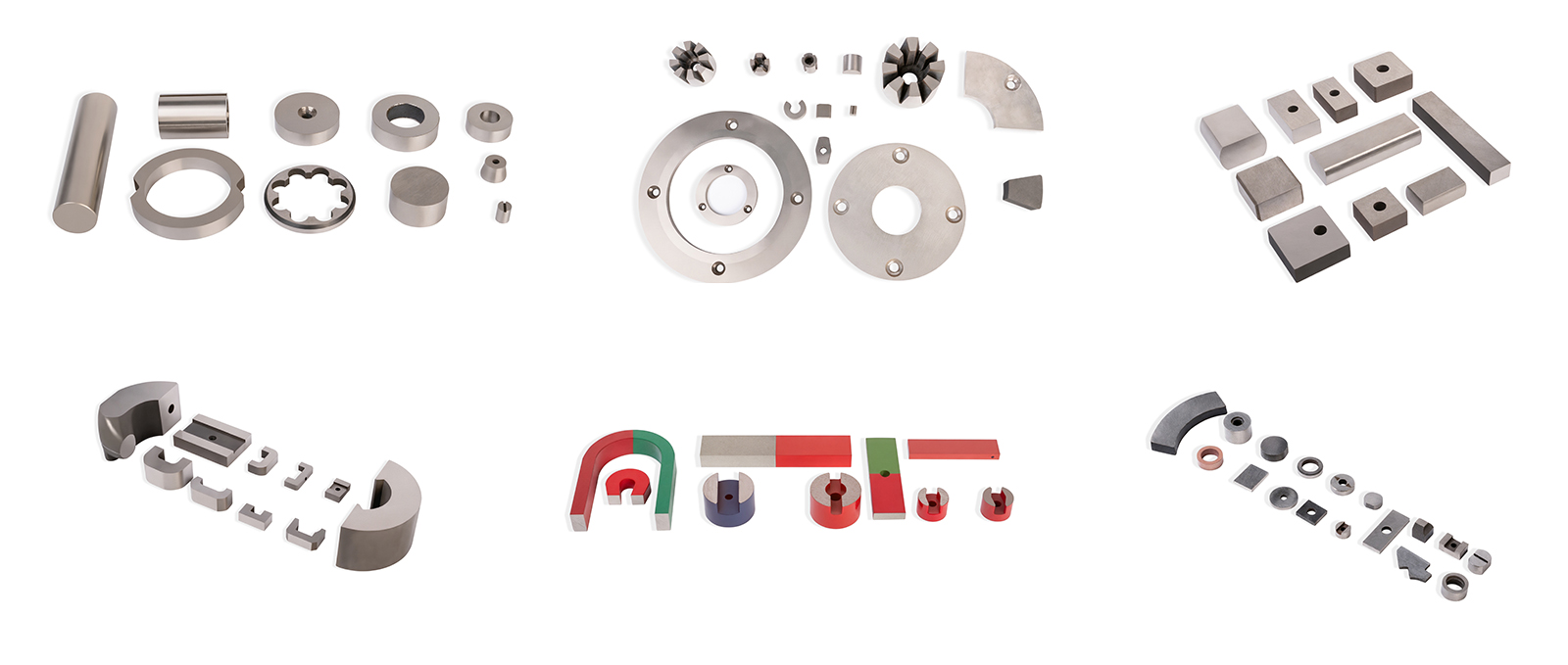

    Hangzhou Permanent Magnet Group (HPMG) with more than 40 years of experience in Alnico production and preparation, is the world's largest Alnico permanent magnet manufacturing base, with a complete and leading product performance grades, can be customized according to the needs of all kinds of cast and sintered Alnico products.

    Detailed product parameters can be downloaded from the end of this page or from the download section.

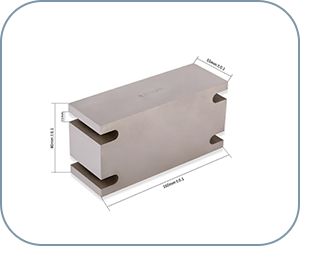

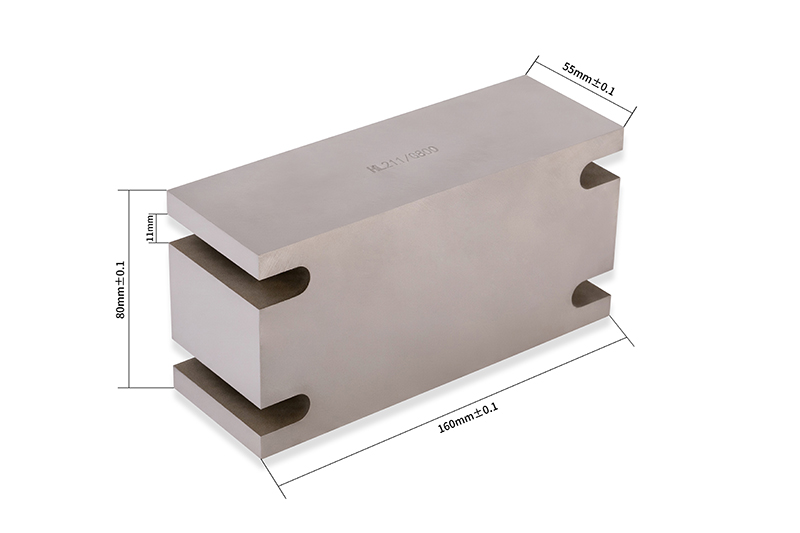

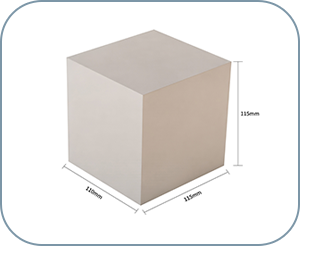

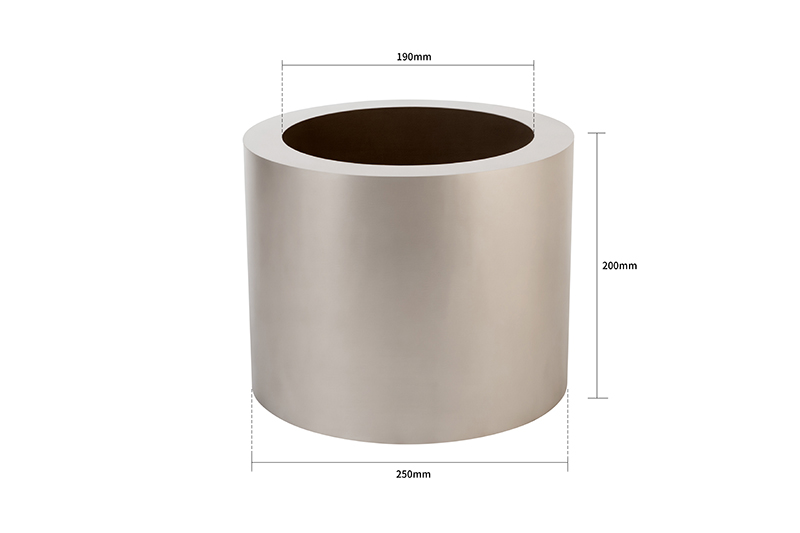

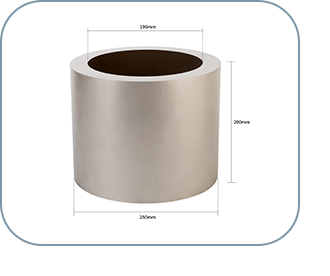

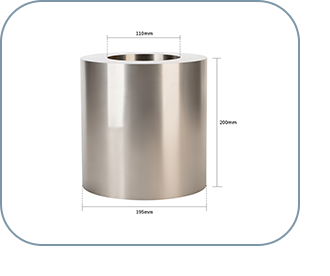

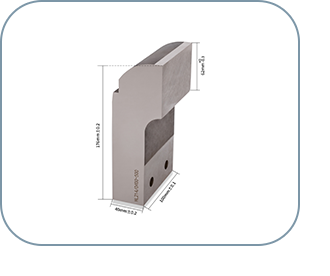

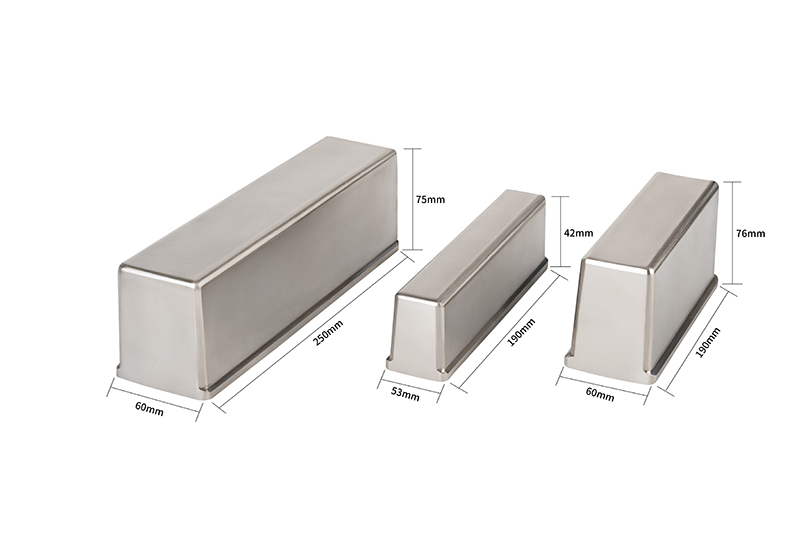

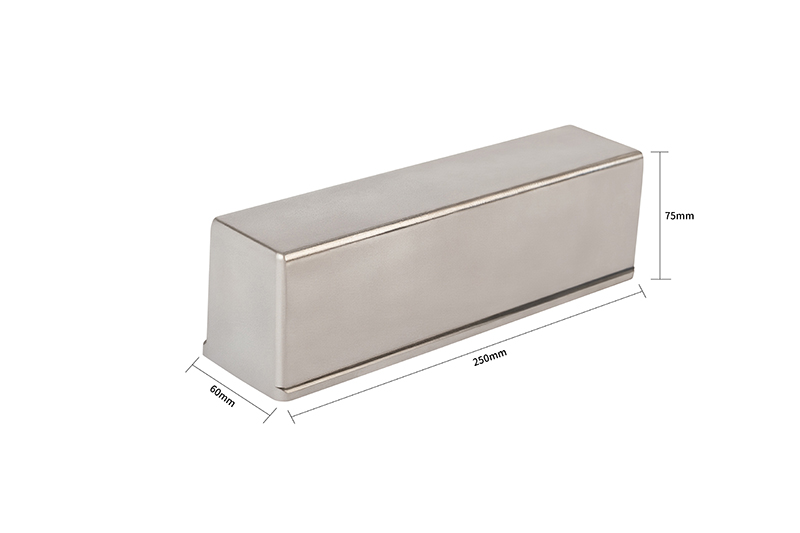

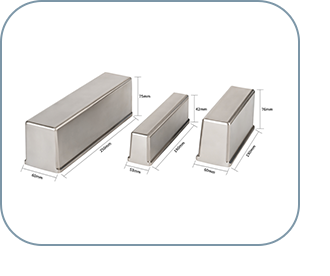

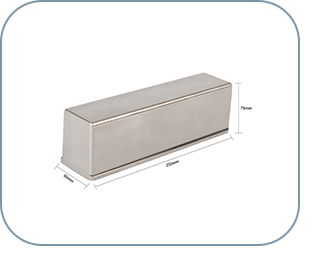

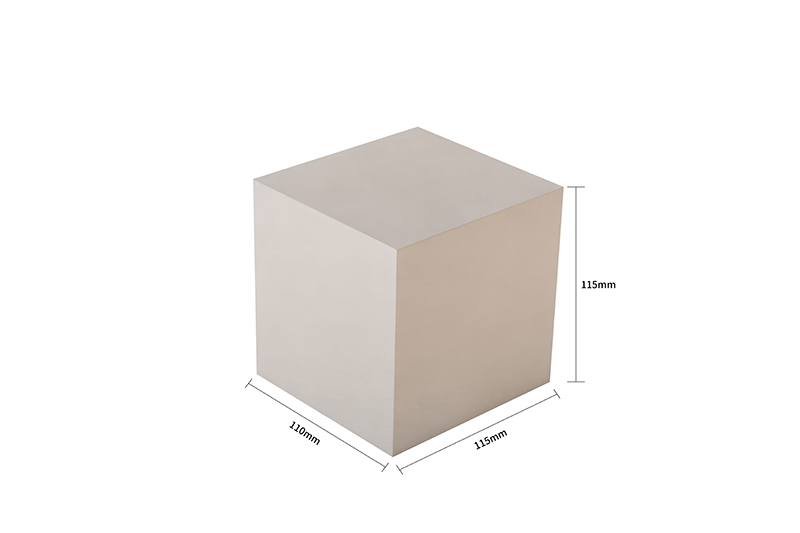

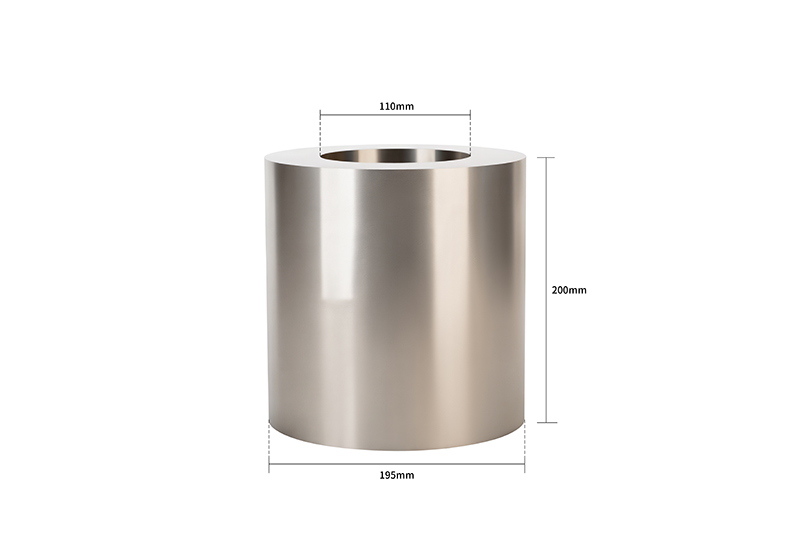

    HPMG has a mature integrated large magnet casting process

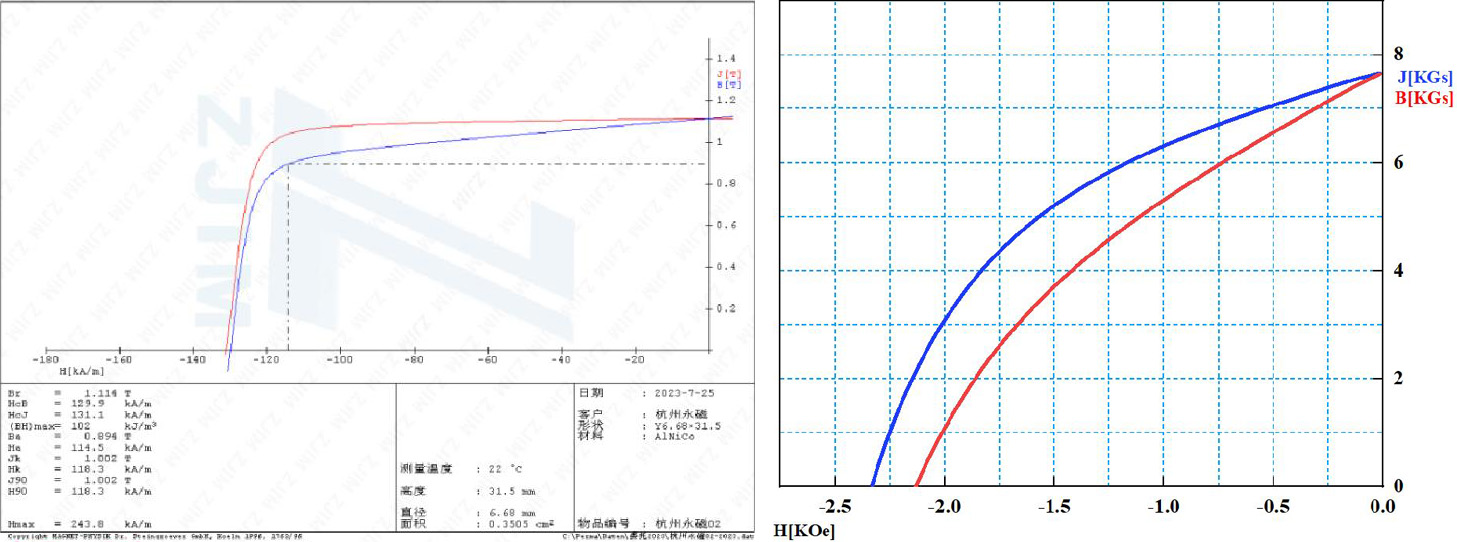

    HPMG can mass produce magnets with high performance (BH)max≥12 MGOe and high coercivity Hcb≥2.1KOe.

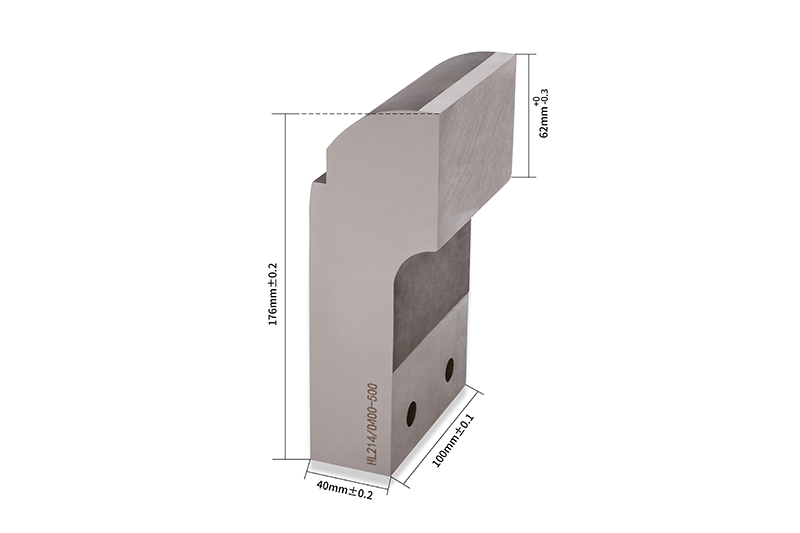

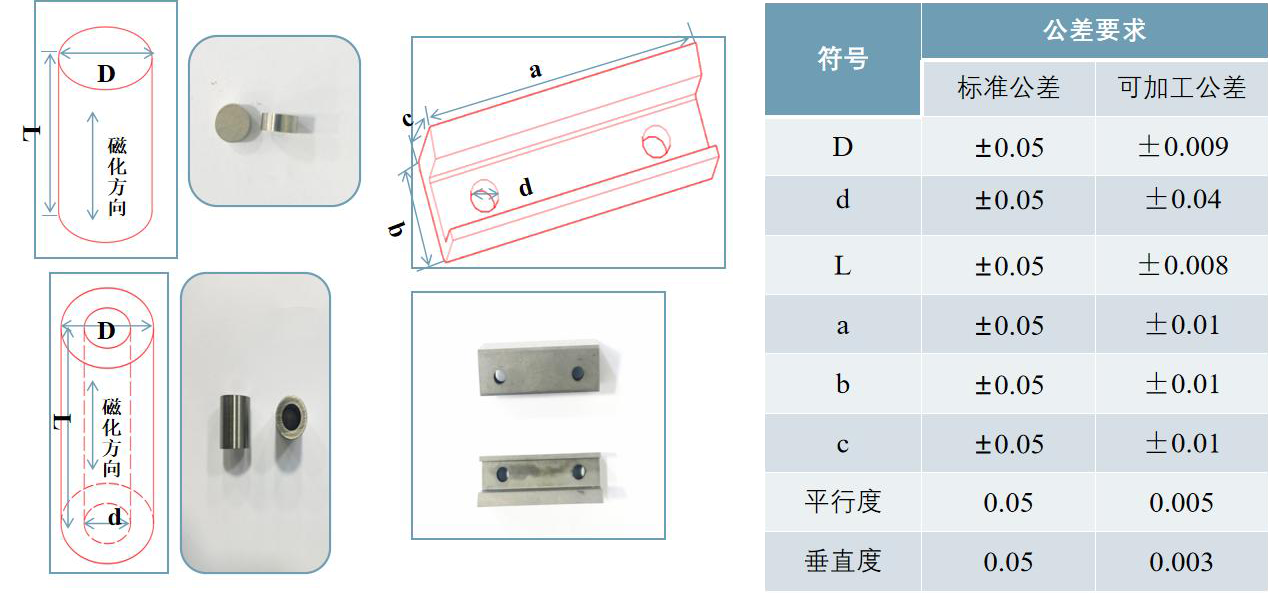

    HPMG has the ability to process magnets with high dimensional (form and positional) accuracy.




    Alnico Magnets Grades And Properties
    Name Download Grade Br
    mT(kGs)         		Hcb
    kA/m(kOe)    		 Hcj
    kA/m(kOe)

    (BH)max

    kJ/m3(MGOe)

    		 Temperture Coefficient αBr %/°C Temperture Coefficient βHcj %/°C
    ALNICO3 LN10 0.60(6.00) 40(0.50) 10.00(1.25) -0.02 -0.03~-0.07
    ALNICO3 LNG10 0.60(6.00) 44(0.55) 10.00(1.25) -0.02 -0.03~-0.07
    ALNICO2 LNG12 0.70(7.00) 44.00(0.55) 12.00(1.50) -0.02 -0.03~-0.07
    ALNICO2 LNG13 0.68(6.80) 48.00(0.60) 13.00(1.63) -0.02 -0.03~-0.07
    ALNICO4 LNG16 0.80(8.00) 48.00(0.60) 16.00(2.00) -0.02 -0.03~-0.07
    ALNICO4 LNG18 0.90(9.00) 48.00(0.60) 18.00(2.25) -0.02 -0.03~-0.07
    ALNICO5 LNG37 1.20(12.00) 48.00(0.60) 37.00(4.63) -0.02 -0.03~-0.07
    ALNICO5 LNG40 1.23(12.30) 48.00(0.60) 40.00(5.00) -0.02 -0.03~-0.07
    ALNICO5 LNG44 1.25(12.50) 52.00(0.65) 44.00(5.50) -0.02 -0.03~-0.07
    ALNICO5DG LNG48 1.28(12.80) 56.00(0.70) 48.00(6.00) -0.02 -0.03~-0.07
    ALNICO5DG LNG52 1.30(13.00) 56.00(0.70) 52.00(6.50) -0.02 -0.03~-0.07
    ALNICO5-7 LNG56 1.30(13.00) 58.00(0.72) 56.00(7.00) -0.02 -0.03~-0.07
    ALNICO5-7 LNG60 1.33(13.30) 60.00(0.75) 60.00(7.50) -0.02 -0.03~-0.07
    ALNICO6 LNGT28 1.00(10.00) 56.00(0.70) 28.00(3.50) -0.02 -0.03~-0.07
    ALNICO6 LNGT30 1.10(11.00) 56.00(0.70) 30.00(3.75) -0.02 -0.03~-0.07
    ALNICO8 LNGT18 0.58(5.80) 80.00(1.00) 18.00(2.25) -0.02 -0.03~-0.07
    ALNICO8 LNGT32 0.80(8.00) 100.00(1.25) 32.00(4.00) -0.02 -0.03~-0.07
    ALNICO8 LNGT38 0.80(8.00) 110.00(1.38) 38.00(4.75) -0.02 -0.03~-0.07
    ALNICO8 LNGT44 0.85(8.50) 115.00(1.45) 44.00(5.50) -0.02 -0.03~-0.07
    ALNICO8HE LNGT48 0.90(9.00) 120.00(1.50) 48.00(6.00) -0.02 -0.03~-0.07
    ALNICO9 LNGT60 0.90(9.00) 110.00(1.38) 60.00(7.50) -0.02 -0.03~-0.07
    ALNICO9 LNGT72 1.05(10.50) 112.00(1.40) 72.00(9.00) -0.02 -0.03~-0.07
    ALNICO9 LNGT80 1.08(10.80) 120.00(1.50) 80.00(10.00) -0.02 -0.03~-0.07
    ALNICO9 LNGT88 1.10(11.00) 115.00(1.45) 88.00(11.00) -0.02 -0.03~-0.07
    ALNICO9 LNGT96 1.15(11.50) 118.00(1.48) 96.00(12.00) -0.02 -0.03~-0.07
    ALNICO8HC LNGT36J 0.70(7.00) 140.00(1.75) 36.00(4.50) -0.02 -0.03~-0.07
    ALNICO8HC LNGT48J 0.80(8.00) 143.00(1.80) 48.00(6.00) -0.02 -0.03~-0.07
    ALNICO8HC LNGT52J 0.85(8.50) 140.00(1.75) 52.00(6.50) -0.02 -0.03~-0.07
    S.ALNICO3 FLN8 0.50(5.00) 40.00(0.50) 8.00(1.00) -0.02 -0.03~-0.07
    S.ALNICO2 FLNG12 0.65(6.50) 48.00(0.60) 12.00(1.50) -0.02 -0.03~-0.07
    S.ALNICO7 FLNGT18 0.60(6.00) 90.00(1.13) 18.00(2.20) -0.02 -0.03~-0.07
    S.ALNICO5 FLNG34 1.18(11.80) 48.00(0.60) 34.00(4.25) -0.02 -0.03~-0.07
    S.ALNICO6 FLNGT28 1.05(10.50) 56.00(0.70) 28.00(3.50) -0.02 -0.03~-0.07
    S.ALNICO8 FLNGT38 0.80(8.00) 120.00(1.50) 38.00(4.75) -0.02 -0.03~-0.07
    S.ALNICO8 FLNGT42 0.88(8.80) 120.00(1.50) 42.00(5.25) -0.02 -0.03~-0.07
    S.ALNICO8HC FLNGT33J 0.70(7.00) 140.00(1.75) 33.00(4.13) -0.02 -0.03~-0.07
