    • SmCo
    Samarium cobalt magnets (SmCo) have high magnetic performance, low temperature coefficient, high operating temperature (>150°C), and excellent corrosion and oxidation resistance, making them widely used in aerospace, microwave devices, communication systems, medical equipment, sensors, and motors.

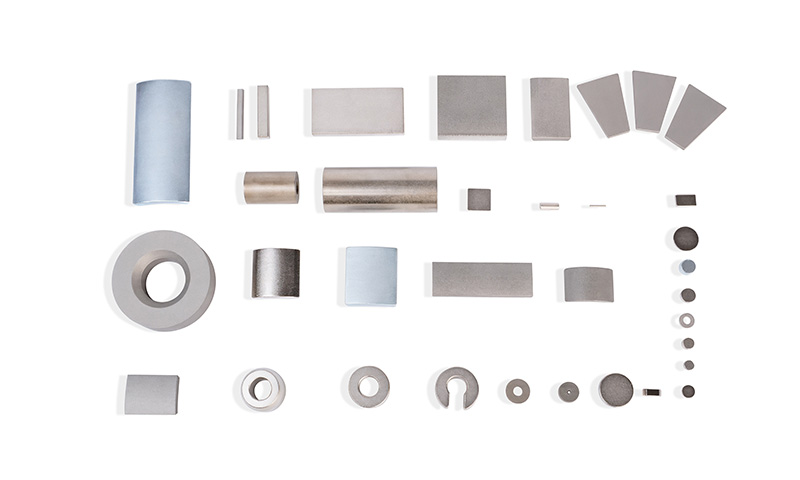

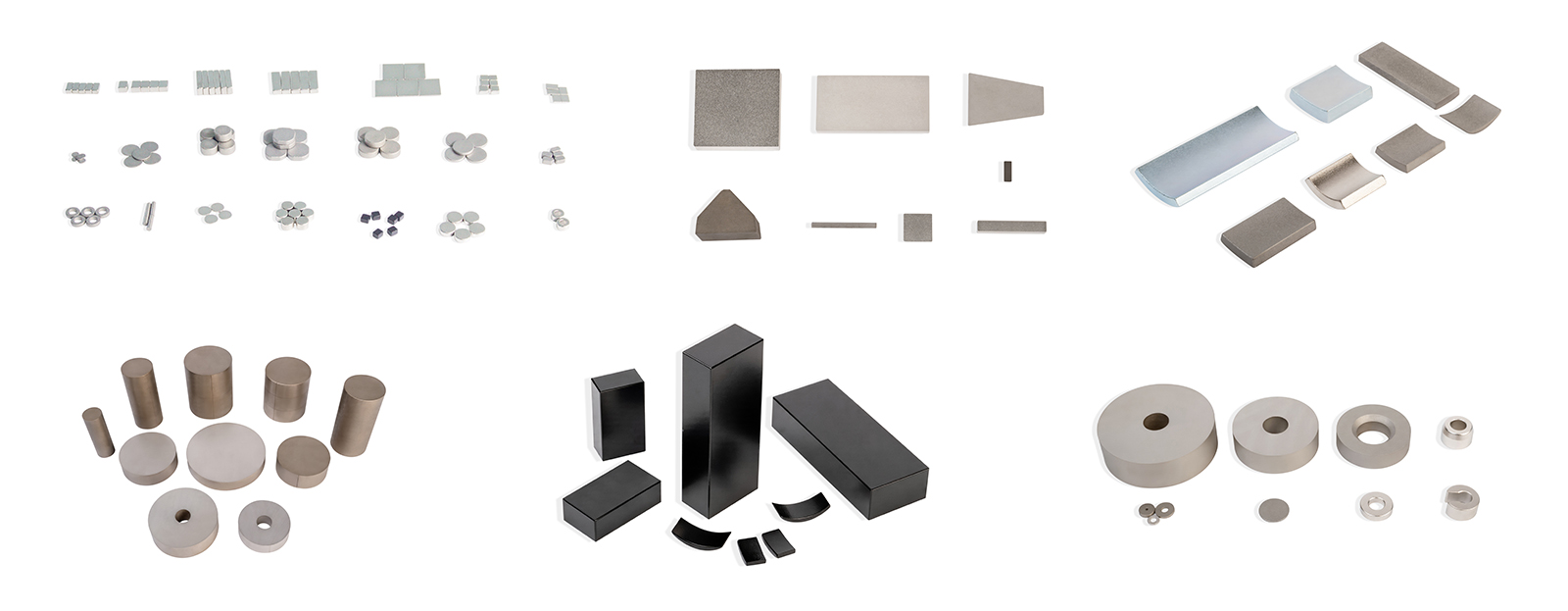

    Hangzhou Permanent Magnet Group (HPMG), a major global manufacturer of SmCo magnets, offers a full range of products including high-performance, low-temperature-coefficient, and high-temperature-resistant variants. Our independently developed 35H series samarium cobalt magnets are currently the industry-leading products.

    Detailed product parameters can be downloaded from the end of this page or from the download section.

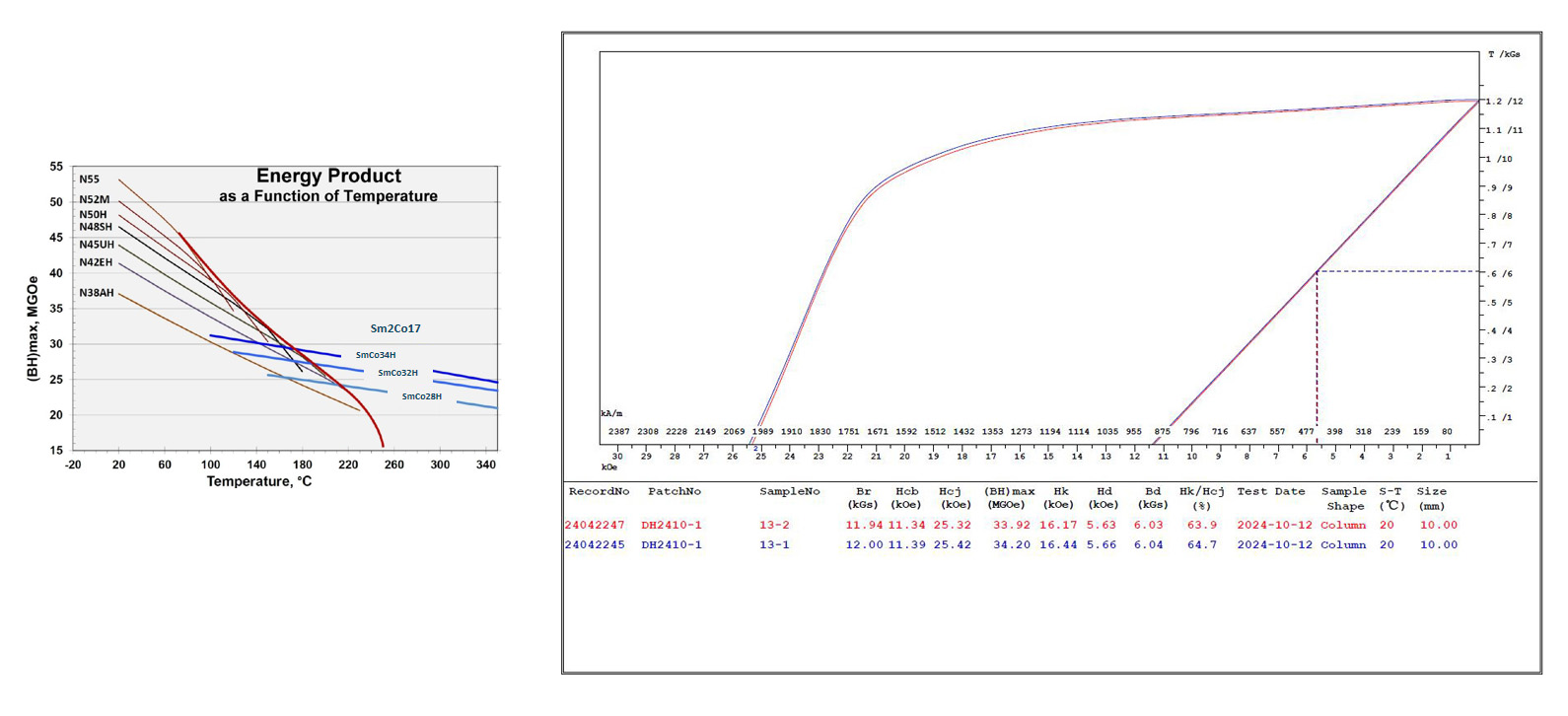

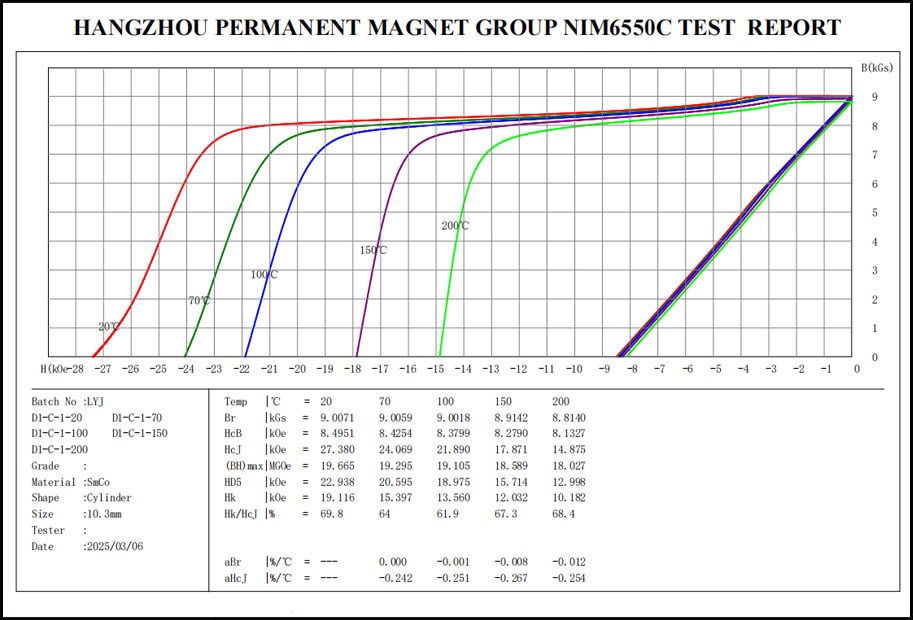

    HPMG has independently developed 35H SmCo magnets, which are at the forefront of the industry

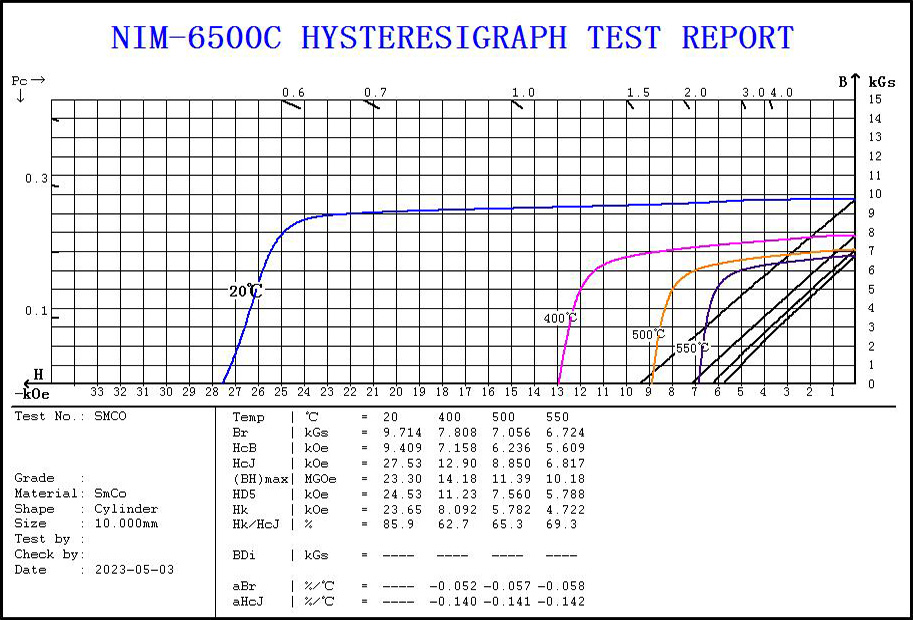

    HPMG can mass produce special SmCo magnets with high operating temperature (550°C) and low temperature coefficient




    SmCo Magnets Grades And Properties
    Name Download Grade Br
    mT(kGs)         		Hcb
    kA/m(kOe)    		 Hcj
    kA/m(kOe)

    (BH)max

    kJ/m3(MGOe)

    		 Temperture Coefficient αBr %/°C Temperture Coefficient βHcj %/°C
    RE2Co17 63/199 S10H 580-710 (5.8-7.1) ≥422 (≥5.3) ≥1990 (≥25) 63-95 (8-12) 0.03 0.2
    RE2Co17 79/199 S12H 650-760 (6.5-7.6) ≥478 (≥6.0) ≥1990 (≥25) 79-111 (10-14) 0.03 0.2
    RE2Co17 95/199 S14H 710-830 (7.1-8.3) ≥525 (≥6.6) ≥1990 (≥25) 95-127 (12-16) 0.03 0.2
    RE2Co17 119/199 S16H 790-860 (7.9-8.6) ≥589 (≥7.4) ≥1990 (≥25) 119-143 (15-18) 0.03 0.2
    RE2Co17 135/199 S18H 830-890 (8.3-8.9) ≥605 (≥7.6) ≥1990 (≥25) 135-159 (17-20) 0.03 0.2
    RE2Co17 151/199 S20H 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1990 (≥25) 151-175 (19-22) 0.03 0.2
    RE2Co17 159/199 S22H 910-980 (9.1-9.8) ≥693 (≥8.7) ≥1990 (≥25) 159-183 (20-23) 0.03 0.2
    RE2Co17 175/199 S24H 960-1030 (9.6-10.3) ≥724 (≥9.1) ≥1990 (≥25) 175-199 (22-25) 0.03 0.2
    RE2Co17 191/199 S26H 1010-1060 (10.1-10.6) ≥733 (≥9.2) ≥1990 (≥25) 191-215 (24-27) 0.03 0.2
    RE2Co17 207/199 S28H 1040-1090 (10.4-10.9) ≥749 (≥9.4) ≥1990 (≥25) 207-231 (26-29) 0.03 0.2
    RE2Co17 222/199 S30H 1080-1110 (10.8-11.1) ≥773 (≥9.7) ≥1990 (≥25) 222-247 (28-31) 0.035 0.2
    RE2Co17 231/199 S32H 1100-1130 (11.0-11.3) ≥804 (≥10.1) ≥1990 (≥25) 231-255 (29-32) 0.038 0.2
    RE2Co17 239/199 S33H 1120-1160 (11.2-11.6) ≥812 (≥10.2) ≥1990 (≥25) 239-263 (30-33) 0.038 0.2
    RE2Co17 247/199 S34H 1150-1180 (11.5-11.8) ≥835 (≥10.5) ≥1990 (≥25) 247-270 (31-34) 0.04 0.25
    RE2Co17 255/199 S35H 1170-1200 (11.7-12.0) ≥860 (≥10.8) ≥1990 (≥25) 255-278 (32-35) 0.04 0.25
    RE2Co17 63/159 S10 580-710 (5.8-7.1) ≥422 (≥5.3) ≥1592 (≥20) 63-95 (8-12) 0.03 0.2
    RE2Co17 79/159 S12 650-760 (6.5-7.6) ≥478 (≥6.0) ≥1592 (≥20) 79-111 (10-14) 0.03 0.2
    RE2Co17 95/159 S14 710-830 (7.1-8.3) ≥525 (≥6.6) ≥1592 (≥20) 95-127 (12-16) 0.03 0.2
    RE2Co17 119/159 S16 790-860 (7.9-8.6) ≥589 (≥7.4) ≥1592 (≥20) 119-143 (15-18) 0.03 0.2
    RE2Co17 135/159 S18 830-890 (8.3-8.9) ≥605 (≥7.6) ≥1592 (≥20) 135-159 (17-20) 0.03 0.2
    RE2Co17 151/159 S20 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1592 (≥20) 151-175 (19-22) 0.03 0.2
    RE2Co17 159/159 S22 910-980 (9.1-9.8) ≥693 (≥8.7) ≥1592 (≥20) 159-183 (20-23) 0.03 0.2
    RE2Co17 175/159 S24 960-1030 (9.6-10.3) ≥724 (≥9.1) ≥1592 (≥20) 175-199 (22-25) 0.03 0.2
    RE2Co17 191/159 S26 1010-1060 (10.1-10.6) ≥733 (≥9.2) ≥1592 (≥20) 191-215 (24-27) 0.03 0.2
    RE2Co17 207/159 S28 1040-1090 (10.4-10.9) ≥749 (≥9.4) ≥1592 (≥20) 207-231 (26-29) 0.03 0.2
    RE2Co17 222/159 S30 1080-1110 (10.8-11.1) ≥773 (≥9.7) ≥1592 (≥20) 222-247 (28-31) 0.035 0.2
    RE2Co17 231/159 S32 1100-1130 (11.2-11.5) ≥804 (≥10.2) ≥1592 (≥20) 231-255 (29-32) 0.038 0.2
    RE2Co17 239/159 S33 1120-1160 (11.2-11.6) ≥812 (≥10.2) ≥1592 (≥20) 239-263 (30-33) 0.038 0.2
    RE2Co17 247/159 S34 1150-1180 (11.5-11.8) ≥835 (≥10.5) ≥1592 (≥20) 247-270 (31-34) 0.04 0.25
    RE2Co17 255/159 S35 1170-1200 (11.7-12.0) ≥860 (≥10.8) ≥1592 (≥20) 255-278 (32-35) 0.04 0.25
    RE2Co17 175/80 S24M 960-1030 (9.6-10.3) 597-756 (7.5-9.5) 796-1273 (10-16) 175-199 (22-25) 0.03 0.2
    RE2Co17 191/80 S26M 1010-1060 (10.1-10.6) 597-820 (7.5-10.3) 796-1273 (10-16) 191-215 (24-27) 0.03 0.2
    RE2Co17 207/80 S28M 1040-1090 (10.4-10.9) 621-836 (7.8-10.5) 796-1273 (10-16) 207-231 (26-29) 0.03 0.2
    RE2Co17 222/80 S30M 1080-1110 (10.8-11.1) 621-836 (7.8-10.5) 796-1273 (10-16) 222-247 (28-31) 0.035 0.2
    RE2Co17 231/80 S32M 1110-1150 (11.1-11.5) 717-844 (9.0-10.6) 796-1273 (10-16) 231-255 (29-32) 0.038 0.2
    RE2Co17 175/44 S24L 960-1030 (9.6-10.3) 438-716 (5.5-9) 478-796 (6-10) 175-199 (22-25) 0.03 0.2
    RE2Co17 191/44 S26L 1010-1060 (10.1-10.6) 438-716 (5.5-9) 478-796 (6-10) 191-215 (24-27) 0.03 0.2
    RE2Co17 207/44 S28L 1040-1090 (10.4-10.9) 438-716 (5.5-9) 478-796 (6-10) 207-231 (26-29) 0.03 0.2
    RE2Co17 222/44 S30L 1080-1120 (10.8-11.2) 438-757 (5.5-9.5) 478-796 (6-10) 222-247 (28-31) 0.035 0.2
    RE2Co17 231/44 S32L 1110-1150 (11.1-11.5) 438-757 (5.5-9.5) 478-796 (6-10) 231-255 (29-32) 0.038 0.2
    RE2Co17 151/199 HTS20H 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1990 (≥25) 151-175 (19-22) 0.05 0.2
    RE2Co17 159/199 HTS22H 910-980 (9.1-9.8) ≥693 (≥8.7) ≥1990 (≥25) 159-183 (20-23) 0.05 0.2
    RE2Co17 175/199 HTS24H 960-1030 (9.6-10.3) ≥724 (≥9.1) ≥1990 (≥25) 175-199 (22-25) 0.05 0.2
    RE2Co17 103/159 LTS14 730-800 (7.3-8.0) ≥565 (≥7.1) ≥1592 (≥20) 103-127 (13-16) 0.005 (20°C-100°C)0.01 (20°C-200°C) 0.3
    RE2Co17 119/159 LTS16 790-860 (7.9-8.6) ≥613 (≥7.7) ≥1592 (≥20) 119-143 (15-18) 0.01 (20°C-100°C) 0.015 (20°C-200°C) 0.3
    RE2Co17 135/159 LTS18 830-890 (8.3-8.9) ≥645 (≥8.1) ≥1592 (≥20) 135-159 (17-20) 0.015 (20°C-100°C) 0.02 (20°C-200°C) 0.3
    RE2Co17 151/159 LTS20 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1592 (≥20) 151-175 (19-22) 0.02 (20°C-100°C) 0.025 (20°C-200°C) 0.3
    RE2Co17 16/159 QS4 300-500 (3.0-5.0) ≥175 (≥2.2) ≥1592 (≥20) 16-48 (2-6) 0.03 0.2
    RE2Co17 32/159 QS6 500-700 (5.0-7.0) ≥287 (≥3.6) ≥1592 (≥20) 32-96 (4-12) 0.03 0.2
    RECo5 119/199 PS16H 790-860 (7.9-8.6) ≥605 (≥7.6) ≥1990 (≥25) 119-143 (15-18) 0.05 0.3
    RECo5 135/199 PS18H 840-910 (8.4-9.1) ≥645 (≥8.1) ≥1990 (≥25) 135-159 (17-20) 0.05 0.3
    RECo5 151/199 PS20H 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1990 (≥25) 151-175 (19-22) 0.05 0.3
    RECo5 159/199 PS22H 910-980 (9.1-9.8) ≥693 (≥8.7) ≥1990 (≥25) 159-183 (20-23) 0.05 0.3
    RECo5 175/199 PS24H 950-1010 (9.5-10.1) ≥717 (≥9.0) ≥1990 (≥25) 175-199 (22-25) 0.05 0.3
    RECo5 111/159 PS14 710-830 (7.1-8.3) ≥541 (≥6.8) ≥1592 (≥20) 95-127 (12-16) 0.05 0.3
    RECo5 119/159 PS16 790-860 (7.9-8.6) ≥605 (≥7.6) ≥1592 (≥20) 119-143 (15-18) 0.05 0.3
    RECo5 135/159 PS18 840-910 (8.4-9.1) ≥645 (≥8.1) ≥1592 (≥20) 135-159 (17-20) 0.05 0.3
    RECo5 151/159 PS20 870-930 (8.7-9.3) ≥653 (≥8.2) ≥1592 (≥20) 151-175 (19-22) 0.05 0.3
    RECo5 159/159 PS22 910-980 (9.1-9.8) ≥693 (≥8.7) ≥1592 (≥20) 159-183 (20-23) 0.05 0.3
    RECo5 175/159 PS24 950-1010 (9.5-10.1) ≥717 (≥9.0) ≥1592 (≥20) 175-199 (22-25) 0.05 0.3
