NdFeB

Neodymium iron boron (NdFeB) magnets are currently the strongest permanent magnet material with excellent magnetic properties and are widely used in various types of permanent magnet motors, engineering machinery, electro - acoustics, electrical appliances, medical devices, etc. However, NdFeB has a low Curie temperature, poor temperature stability and is prone to corrosion, so surface treatment is usually required.

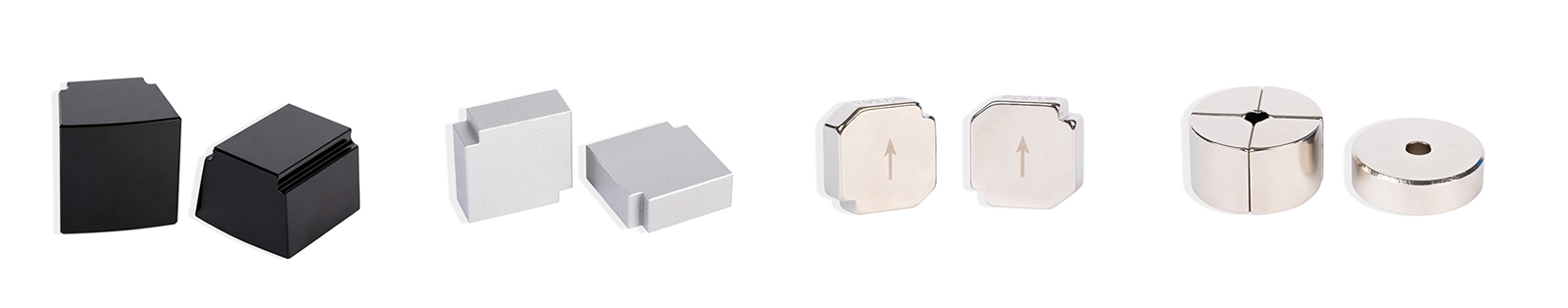

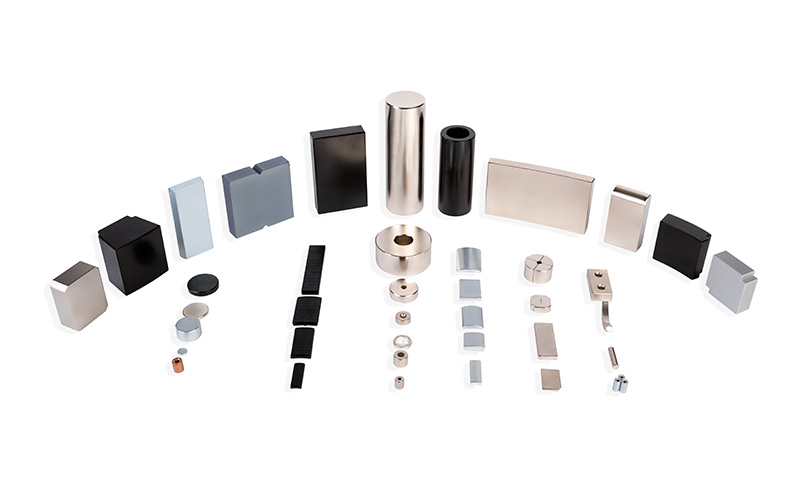

Hangzhou Permanent Magnet Group (HPMG) has a full set of sintered NdFeB magnet production processes and can produce high - performance products of grades such as N58, 56M, 56H, 56SH, 54UH, 50EH, etc. We also offer high - tech products like grain boundary diffusion (GBD), low/free heavy rare earth, and cerium - containing magnets, which are customized to meet our customers' needs.

Detailed product parameters can be downloaded from the end of this page or from the download section.

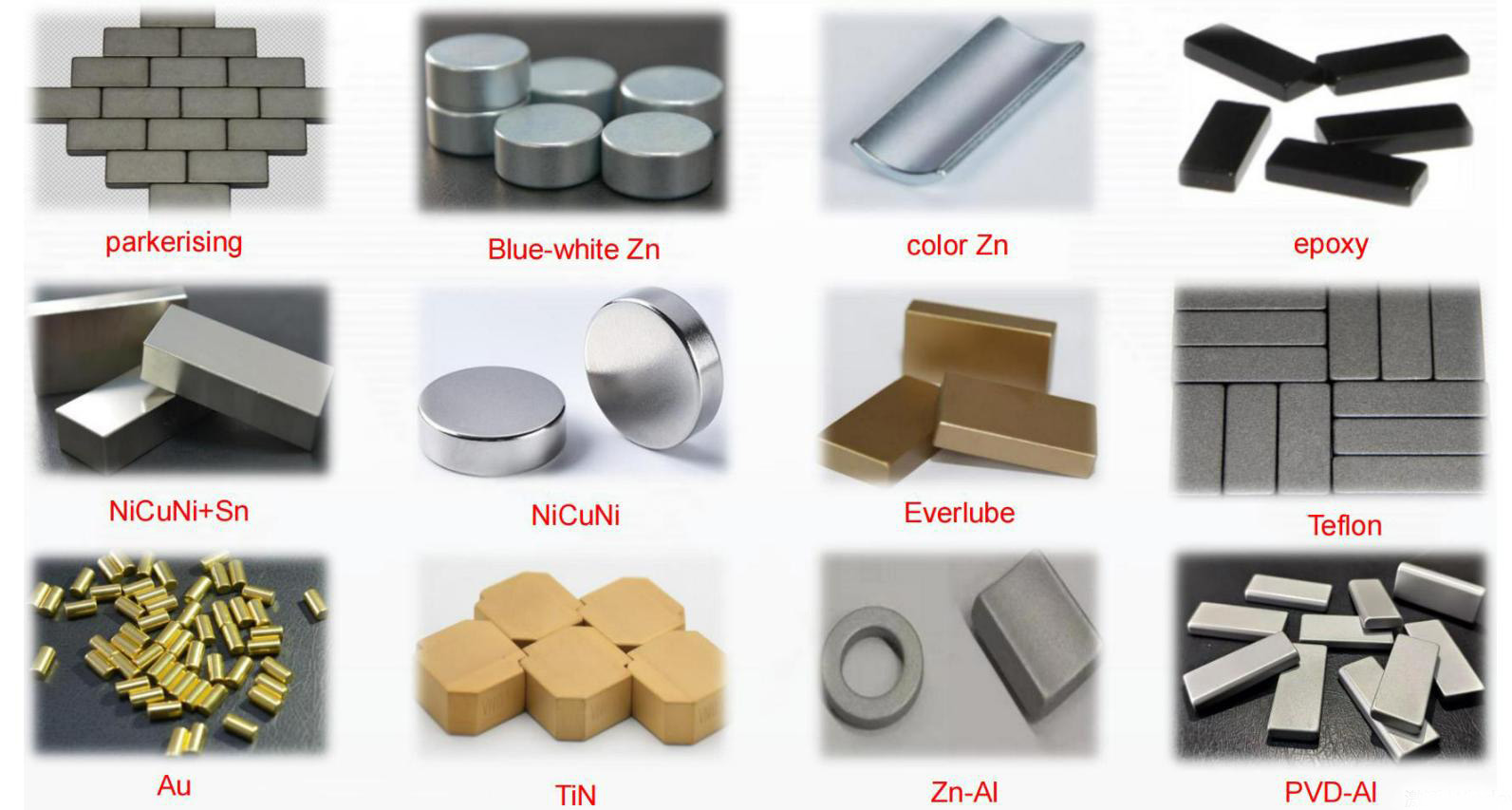

HPMG has a complete NdFeB surface treatment process and can customize different high-end polymer and metal coatings on demand.

NdFeB Magnets Grades And Properties

Name	Download	Grade	Br mT(kGs)	Hcb kA/m(kOe)	Hcj kA/m(kOe)	(BH)max kJ/m3(MGOe)	Temperture Coefficient αBr %/°C	Temperture Coefficient βHcj %/°C
S-NdFeB 280/96		N35	1180-1230 (11.8-12.3)	≥876 (≥11)	≥955 (≥12)	263-287 (33-36)	0.10-0.124	0.65-0.80
S-NdFeB 300/96		N38	1230-1260 (12.3-12.6)	≥899 (≥11.3)	≥955 (≥12)	287-310 (36-39)	0.10-0.124	0.65-0.80
S-NdFeB 320/96		N40	1260-1290 (12.6-12.9)	≥912 (≥11.5)	≥955 (≥12)	302-326 (38-41)	0.10-0.124	0.65-0.80
S-NdFeB 335/96		N42	1290-1330 (12.9-13.3)	≥923 (≥11.6)	≥955 (≥12)	318-342 (40-43)	0.10-0.124	0.65-0.80
S-NdFeB 360/96		N45	1330-1370 (13.3-13.7)	≥931 (≥11.7)	≥955 (≥12)	342-366 (43-46)	0.10-0.124	0.65-0.80
S-NdFeB 380/96		N48	1370-1400 (13.7-14.0)	≥939 (≥11.8)	≥955 (≥12)	366-390 (46-49)	0.10-0.124	0.65-0.80
S-NdFeB 400/96		N50	1390-1430 (13.9-14.3)	≥947 (≥11.9)	≥955 (≥12)	374-406 (47-51)	0.10-0.124	0.65-0.80
S-NdFeB 415/96		N52	1420-1460 (14.2-14.6)	≥947 (≥11.9)	≥955 (≥12)	390-414(49-52)	0.10-0.124	0.65-0.80
S-NdFeB 430/96		N54	1450-1490 (14.5-14.9)	≥912 (≥11.5)	≥955 (≥12)	406-438 (51-55)	0.10-0.124	0.65-0.80
S-NdFeB 445/96		N56	1480-1520 (14.6-15.2)	≥860 (≥10.8)	≥876 (≥11)	422-454 (52-57)	0.10-0.124	0.65-0.80
S-NdFeB 280/111		35M	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥1114 (≥14)	263-287 (33-36)	0.10-0.124	0.60-0.75
S-NdFeB 300/111		38M	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥1114 (≥14)	287-310 (36-39)	0.10-0.124	0.60-0.75
S-NdFeB 320/111		40M	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥1114 (≥14)	302-326 (38-41)	0.10-0.124	0.60-0.75
S-NdFeB 335/111		42M	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥1114 (≥14)	318-342 (40-43)	0.10-0.124	0.60-0.75
S-NdFeB 360/111		45M	1330-1370 (13.3-13.7)	≥1002 (≥12.6)	≥1114 (≥14)	342-366 (43-46)	0.10-0.124	0.60-0.75
S-NdFeB 380/111		48M	1370-1400 (13.7-14.0)	≥1027 (≥12.9)	≥1114 (≥14)	366-390 (46-49)	0.10-0.124	0.60-0.75
S-NdFeB 400/111		50M	1390-1430 (13.9-14.3)	≥1035 (≥13.0)	≥1114 (≥14)	374-406 (47-51)	0.10-0.124	0.60-0.75
S-NdFeB 415/111		52M	1420-1460 (14.2-14.6)	≥995 (≥12.5)	≥1114 (≥14)	390-414(49-52)	0.10-0.124	0.60-0.75
S-NdFeB 430/111		54M	1450-1490 (14.5-14.9)	≥995 (≥12.5)	≥1114 (≥14)	406-438 (51-55)	0.10-0.124	0.60-0.75
S-NdFeB 240/135		30H	1080-1140 (10.8-11.4)	≥827 (≥10.4)	≥1353 (≥17)	223-247 (28-31)	0.09-0.120	0.55-0.70
S-NdFeB 260/135		33H	1140-1180 (11.4-11.8)	≥860 (≥10.8)	≥1353 (≥17)	247-271 (31-34)	0.09-0.120	0.55-0.70
S-NdFeB 280/135		35H	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥1353 (≥17)	263-287 (33-36)	0.09-0.120	0.55-0.70
S-NdFeB 300/135		38H	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥1353 (≥17)	287-310 (36-39)	0.09-0.120	0.55-0.70
S-NdFeB 320/135		40H	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥1353 (≥17)	302-326 (38-41)	0.09-0.120	0.55-0.70
S-NdFeB 335/135		42H	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥1353 (≥17)	318-342 (40-43)	0.09-0.120	0.55-0.70
S-NdFeB 360/135		45H	1330-1370 (13.3-13.7)	≥1003 (≥12.6)	≥1353 (≥17)	342-366 (43-46)	0.09-0.120	0.55-0.70
S-NdFeB 380/135		48H	1370-1400 (13.7-14.0)	≥1035 (≥13.0)	≥1353 (≥17)	366-390 (46-49)	0.09-0.120	0.55-0.70
S-NdFeB 400/135		50H	1390-1430 (13.9-14.3)	≥1058 (≥13.3)	≥1353 (≥17)	374-406 (47-51)	0.09-0.120	0.55-0.70
S-NdFeB 415/127		52H	1420-1460 (14.2-14.6)	≥1074 (≥13.5)	≥1353 (≥17)	390-414(49-52)	0.09-0.120	0.55-0.70
S-NdFeB 430/127		54H	1450-1490 (14.5-14.9)	≥1074 (≥13.5)	≥1274 (≥16)	406-438 (51-55)	0.09-0.120	0.55-0.70
S-NdFeB 240/159		30SH	1080-1140 (10.8-11.4)	≥827 (≥10.4)	≥1592 (≥20)	223-247 (28-31)	0.09-0.120	0.50-0.65
S-NdFeB 260/159		33SH	1140-1180 (11.4-11.8)	≥860 (≥10.8)	≥1592 (≥20)	247-271 (31-34)	0.09-0.120	0.50-0.65
S-NdFeB 280/159		35SH	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥1592 (≥20)	263-287 (33-36)	0.09-0.120	0.50-0.65
S-NdFeB 300/159		38SH	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥1592 (≥20)	287-310 (36-39)	0.09-0.120	0.50-0.65
S-NdFeB 320/159		40SH	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥1592 (≥20)	302-326 (38-41)	0.09-0.120	0.50-0.65
S-NdFeB 335/159		42SH	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥1592 (≥20)	318-342 (40-43)	0.09-0.120	0.50-0.65
S-NdFeB 360/159		45SH	1330-1370 (13.3-13.7)	≥1003 (≥12.6)	≥1592 (≥20)	342-366 (43-46)	0.09-0.120	0.50-0.65
S-NdFeB 380/159		48SH	1370-1400 (13.7-14.0)	≥1035 (≥13.0)	≥1592 (≥20)	366-390 (46-49)	0.09-0.120	0.50-0.65
S-NdFeB 400/159		50SH	1390-1430 (13.9-14.3)	≥1058 (≥13.3)	≥1592 (≥20)	374-406 (47-51)	0.09-0.120	0.50-0.65
S-NdFeB 415/159		52SH	1420-1460 (14.2-14.6)	≥1074 (≥13.5)	≥1512 (≥19)	390-414(49-52)	0.09-0.120	0.50-0.65
S-NdFeB 220/199		28UH	1040-1090 (10.4-10.9)	≥780 (≥9.8)	≥1990 (≥25)	207-231 (26-29)	0.09-0.110	0.50-0.60
S-NdFeB 240/199		30UH	1080-1140 (10.8-11.4)	≥827 (≥10.4)	≥1990 (≥25)	223-247 (28-31)	0.09-0.110	0.50-0.60
S-NdFeB 260/199		33UH	1140-1180 (11.4-11.8)	≥860 (≥10.8)	≥1990 (≥25)	247-271 (31-34)	0.09-0.110	0.50-0.60
S-NdFeB 280/199		35UH	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥1990 (≥25)	263-287 (33-36)	0.09-0.110	0.50-0.60
S-NdFeB 300/199		38UH	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥1990 (≥25)	287-310 (36-39)	0.09-0.110	0.50-0.60
S-NdFeB 320/199		40UH	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥1990 (≥25)	302-326 (38-41)	0.09-0.110	0.50-0.60
S-NdFeB 335/199		42UH	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥1990 (≥25)	318-342 (40-43)	0.09-0.110	0.50-0.60
S-NdFeB 360/199		45UH	1330-1370 (13.3-13.7)	≥1003 (≥12.6)	≥1990 (≥25)	342-366 (43-46)	0.09-0.110	0.50-0.60
S-NdFeB 380/199		48UH	1360-1400 (13.6-14.0)	≥1035 (≥13.0)	≥1990 (≥25)	358-390 (45-49)	0.09-0.110	0.50-0.60
S-NdFeB 220/239		28EH	1040-1090 (10.4-10.9)	≥780 (≥9.8)	≥2388 (≥30)	207-231 (26-29)	0.09-0.110	0.45-0.55
S-NdFeB 240/239		30EH	1080-1140 (10.8-11.4)	≥827 (≥10.4)	≥2388 (≥30)	223-247 (28-31)	0.09-0.110	0.45-0.55
S-NdFeB 260/239		33EH	1140-1180 (11.4-11.8)	≥860 (≥10.8)	≥2388 (≥30)	247-271 (31-34)	0.09-0.110	0.45-0.55
S-NdFeB 280/239		35EH	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥2388 (≥30)	263-287 (33-36)	0.09-0.110	0.45-0.55
S-NdFeB 300/239		38EH	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥2388 (≥30)	287-310 (36-39)	0.09-0.110	0.45-0.55
S-NdFeB 320/239		40EH	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥2388 (≥30)	302-326 (38-41)	0.09-0.110	0.45-0.55
S-NdFeB 335/239		42EH	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥2388 (≥30)	318-342 (40-43)	0.09-0.110	0.45-0.55
S-NdFeB 360/231		45EH	1330-1370 (13.3-13.7)	≥1003 (≥12.6)	≥2308 (≥29)	342-366 (43-46)	0.09-0.110	0.45-0.55
S-NdFeB 220/279		28TH	1040-1090 (10.4-10.9)	≥780 (≥9.8)	≥2786 (≥35)	207-231 (26-29)	0.09-0.110	0.40-0.50
S-NdFeB 240/279		30TH	1080-1140 (10.8-11.4)	≥827 (≥10.4)	≥2786 (≥35)	223-247 (28-31)	0.09-0.110	0.40-0.50
S-NdFeB 260/279		33TH	1140-1180 (11.4-11.8)	≥860 (≥10.8)	≥2786 (≥35)	247-271 (31-34)	0.09-0.110	0.40-0.50
S-NdFeB 280/279		35TH	1180-1230 (11.8-12.3)	≥899 (≥11.3)	≥2786 (≥35)	263-287 (33-36)	0.09-0.110	0.40-0.50
S-NdFeB 300/279		38TH	1230-1260 (12.3-12.6)	≥923 (≥11.6)	≥2786 (≥35)	287-310 (36-39)	0.09-0.110	0.40-0.50
S-NdFeB 320/279		40TH	1260-1290 (12.6-12.9)	≥947 (≥11.9)	≥2786 (≥35)	302-326 (38-41)	0.09-0.110	0.40-0.50
S-NdFeB 335/270		42TH	1290-1330 (12.9-13.3)	≥971 (≥12.2)	≥2706 (≥34)	318-342 (40-43)	0.09-0.110	0.40-0.50
S-NdFeB 415/135		G-52H	1430-1460 (14.3-14.6)	≥1074 (≥13.5)	≥1353 (≥17)	398-422(50-53)	0.11-0.13	0.60-0.70
S-NdFeB 437/135		G-55H	1460-1500 (14.6-15.0)	≥1098 (≥13.8)	≥1353 (≥17)	421-446 (53-56)	0.11-0.13	0.60-0.70
S-NdFeB 380/159		G-48SH	1370-1400(13.7-14.0)	≥1035 (≥13.0)	≥1600(≥20)	366-390(46-49)	0.11-0.13	0.60-0.65
S-NdFeB 400/159		G-50SH	1400-1430 (14.0-14.3)	≥1058 (≥13.3)	≥1600(≥20)	374-406(47-51)	0.11-0.13	0.60-0.65
S-NdFeB 415/159		G-52SH	1430-1460 (14.3-14.6)	≥1074 (≥13.5)	≥1600(≥20)	398-422(50-53)	0.11-0.13	0.60-0.65
S-NdFeB 437/159		G-55SH	1460-1500 (14.6-15.0)	≥1098 (≥13.8)	≥1600(≥20)	421-446 (53-56)	0.11-0.13	0.60-0.65
S-NdFeB 335/199		G-42UH	1290-1330(12.9-13.3)	≥971 (≥12.2)	≥1990(≥25)	318-342(40-43)	0.11-0.12	0.50-0.60
S-NdFeB 360/199		G-45UH	1330-1370(13.3-13.7)	≥1003(≥12.6)	≥1990(≥25)	342-366(43-46)	0.11-0.12	0.50-0.60
S-NdFeB 380/199		G-48UH	1370-1400(13.7-14.0)	≥1035 (≥13.0)	≥1990(≥25)	366-390(46-49)	0.11-0.12	0.50-0.60
S-NdFeB 400/199		G-50UH	1400-1430 (14.0-14.3)	≥1058 (≥13.3)	≥1990(≥25)	374-406(47-51)	0.11-0.12	0.50-0.60
S-NdFeB 415/199		G-52UH	1430-1460 (14.3-14.6)	≥1074 (≥13.5)	≥1990(≥25)	398-422(50-53)	0.11-0.12	0.50-0.60
S-NdFeB 260/239		G-33EH	1140-1180(11.4-11.8)	≥860 (≥10.8)	≥2388(≥30)	247-271(31-34)	0.10-0.12	0.45-0.55
S-NdFeB 280/239		G-35EH	1180-1230(11.8-12.3)	≥899 (≥11.3)	≥2388(≥30)	263-287(33-36)	0.10-0.12	0.45-0.55
S-NdFeB 300/239		G-38EH	1230-1260(12.3-12.6)	≥923 (≥11.6)	≥2388(≥30)	287-310(36-39)	0.10-0.12	0.45-0.55
S-NdFeB 320/239		G-40EH	1260-1290(12.6-12.9)	≥947 (≥11.9)	≥2388(≥30)	302-326(38-41)	0.10-0.12	0.45-0.55
S-NdFeB 335/239		G-42EH	1290-1330(12.9-13.3)	≥971 (≥12.2)	≥2388(≥30)	318-342(40-43)	0.10-0.12	0.45-0.55
S-NdFeB 360/239		G-45EH	1330-1370(13.3-13.7)	≥1003 (≥12.6)	≥2388(≥30)	342-366(43-46)	0.10-0.12	0.45-0.55
S-NdFeB 380/239		G-48EH	1370-1400(13.7-14.0)	≥1035 (≥13.0)	≥2388(≥30)	366-390(46-49)	0.10-0.12	0.45-0.55
S-NdFeB 400/239		G-50EH	1400-1430 (14.0-14.3)	≥1035 (≥13.0)	≥2388(≥30)	374-406(47-51)	0.10-0.12	0.45-0.55
S-NdFeB 260/279		G-33TH	1140-1180(11.4-11.8)	≥860 (≥10.8)	≥2785(≥35)	247-271(31-34)	0.095-0.11	0.42-0.52
S-NdFeB 280/279		G-35TH	1180-1230(11.8-12.3)	≥899 (≥11.3)	≥2785(≥35)	263-287(33-36)	0.095-0.11	0.42-0.52
S-NdFeB 300/279		G-38TH	1230-1260(12.3-12.6)	≥923(≥11.6)	≥2785(≥35)	287-310(36-39)	0.095-0.11	0.42-0.52
S-NdFeB 320/279		G-40TH	1260-1290(12.6-12.9)	≥947 (≥11.9)	≥2785(≥35)	302-326(38-41)	0.095-0.11	0.42-0.52
S-NdFeB 335/279		G-42TH	1290-1330(12.9-13.3)	≥971(≥12.2)	≥2785(≥35)	318-342(40-43)	0.095-0.11	0.42-0.52
S-NdFeB 360/279		G-45TH	1330-1370(13.3-13.7)	≥1003 (≥12.6)	≥2706(≥34)	342-366(43-46)	0.095-0.11	0.42-0.52
S-NdFeB 430/135		G-54H	1440-1470 (14.4-14.7)	≥1074 (≥13.5)	≥1353 (≥17)	398-422 (50-53)	0.09-0.12	0.55-0.70
S-NdFeB 445/135		G-56H	1460-1500 (14.6-15.0)	≥1074 (≥13.5)	≥1274 (≥16)	406-438 (51-55)	0.09-0.12	0.55-0.70
S-NdFeB 430/159		G-54SH	1440-1470 (14.4-14.7)	≥1074 (≥13.5)	≥1592 (≥20)	398-422 (50-53)	0.09-0.12	0.50-0.65
S-NdFeB 445/151		G-56SH	1460-1480 (14.6-14.8)	≥1035 (≥13.0)	≥1512 (≥19)	406-438 (51-55)	0.09-0.12	0.50-0.65
S-NdFeB 430/191		G-54UH	1430-1470 (14.3-14.7)	≥1035 (≥13.0)	≥1910 (≥24)	390-422 (49-53)	0.09-0.11	0.50-0.60
